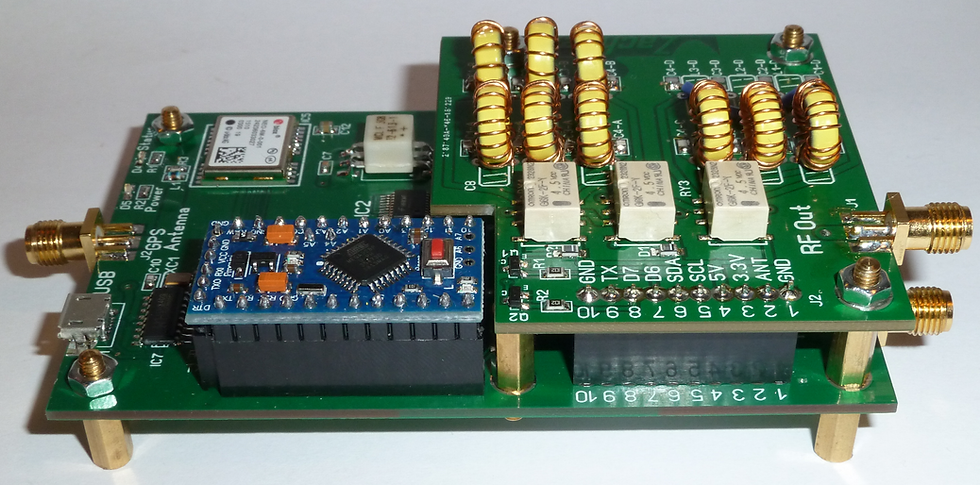

Mezzanine LP4 add-on card for the WSPR_TX_LP1 (Needs components, read text)

SKU: 1020

The Mezzanine LP4 add-on card is an expansion for the WSPR-TX_LP1 tranmitter giving it up to four low pass filters. (Sold separately, se product "SMD and T37 Low Pass filter")


Some quick features:

  1. Sits on top of a WSPR-TX_LP1 transmitter as an add-on.
  2. Expands the WSPR-TX_LP1 with four low pass filters.
  3. Is a partial Kit.
  4. Needs four low pass filters, product number 1021.
  5. The user chooses what four Ham bands to build low pass filter for.
  6. 4-layer PCB for highest overtone suppression.
  7. A 20 page build instruction document help the user build and integrate it to the WSPR-TX_LP1 transmitter.

Low-pass filters sold separately, see product 1021.



For more information including Schema and build instructions - see the product page


The product comes with the board built but the user need to solder in components for low pass filters.
